Product Overview:

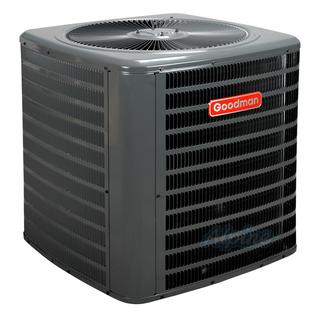

The Goodman® GSXN4 Central Air Conditioning Condenser is designed for exceptional energy efficiency and quiet operation, setting a high standard in the heating and cooling industry. With a 14.3 SEER2 rating, this condenser helps reduce energy consumption and operational costs over its lifespan. It uses environmentally friendly R-410A refrigerant, which is chlorine-free and helps protect the ozone layer.
Need Assistance with Your System?
Our easy System Selector tool can help you put together a complete central air conditioning system tailored to your needs.
Important Installation Information:
This air conditioning equipment comes pre-charged with R-410A liquid refrigerant, which by Federal law cannot be released into the atmosphere. You can purchase this equipment without EPA certification and perform most of the installation yourself if you are mechanically inclined. However, we strongly recommend having a professional HVAC contractor handle the final installation steps, including managing the refrigerant. A professional contractor has the necessary tools and expertise to complete the installation correctly and safely, ensuring your warranty with Alpine is validated.
Standard Features:
Energy-Efficient Compressor: Designed for reliable performance and lower energy consumption.
Copper Tube / Enhanced Aluminum Fin Coil: 5mm diameter for improved efficiency.
Factory-Installed Filter Drier: Ensures refrigerant cleanliness.
Fully Charged for 15 ft. of Tubing Length: Ready for easy installation.
Service Valves with Sweat Connections: Includes easy-to-access gauge ports.
Contactor with Lug Connection & Ground Lug Connection: For secure and reliable electrical connections.
Certifications: AHRI Certified, ETL Listed.
Cabinet Features:
Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for ease of maintenance.
Venturi: Increases airflow velocity.
Heavy-Gauge Galvanized-Steel Cabinet: Durable and long-lasting.
Architectural Gray Powderpaint Finish: Withstands 500-hour salt-spray test for corrosion resistance.
Steel Louver Coil Guard: Protects the coil from damage.
Rust-Resistant Coated Screws: Ensures durability.
Single-Panel Access to Controls: Provides space for field-installed accessories.
Hurricane-Ready: Meets 2020 Florida Building Code unit integrity requirements for hurricane-type winds when properly anchored.
Specifications:
Stages: Single Stage
TXV Required: Yes
Refrigerant: R-410A
Low Pressure Safety Switch: No
High Pressure Safety Switch: Yes
Energy Efficiency Ratio (EER2): 11.7 – 12 EER2
SEER2: 14.3 – 15.2 SEER2
Total Cooling Capacity: 2 Ton(s)
Base Cooling Capacity: 24,000 BTU
Compressor Type: Rotary
Noise Level: 72 Decibels
Electrical Information:
Frequency: 60 Hz
Voltage Phase: 1
Minimum Ampacity: 11.2 Amps
Maximum Overcurrent Protection (Breaker): 15 Amps
Voltage: 208 – 230 Volts
Line Set Information:
Liquid Line Size (OD): 3/8 Inches
Suction Line Size (OD): 3/4 Inches
Product Dimensions:
Width: 26 Inches
Depth: 26 Inches
Height: 32 1/2 Inches
Pad Size: 30×30 Inches
Product Weight: 138 lbs
Shipping Weight: 153 lbs
Warranty:
Compressor Warranty: 10 Years with Online Registration
Parts Warranty: 10 Years with Online Registration
Certifications:
Qualifies for Govt. Money: No
Approved for US Region(s): North / Southeast / Southwest
ENERGY STAR® Certified: No
Experience superior cooling efficiency with the Goodman® GSXN4 Central Air Conditioning Condenser. Order yours today and enjoy a comfortable, energy-efficient home all year round
